Starlite LED / Flip Chip Opto - 640W - 1500+ PPFD 4 BY 4 COVERAGE @ 2 FEET FROM CANOPY

URSA LED

URSA LED

Well-Known Member

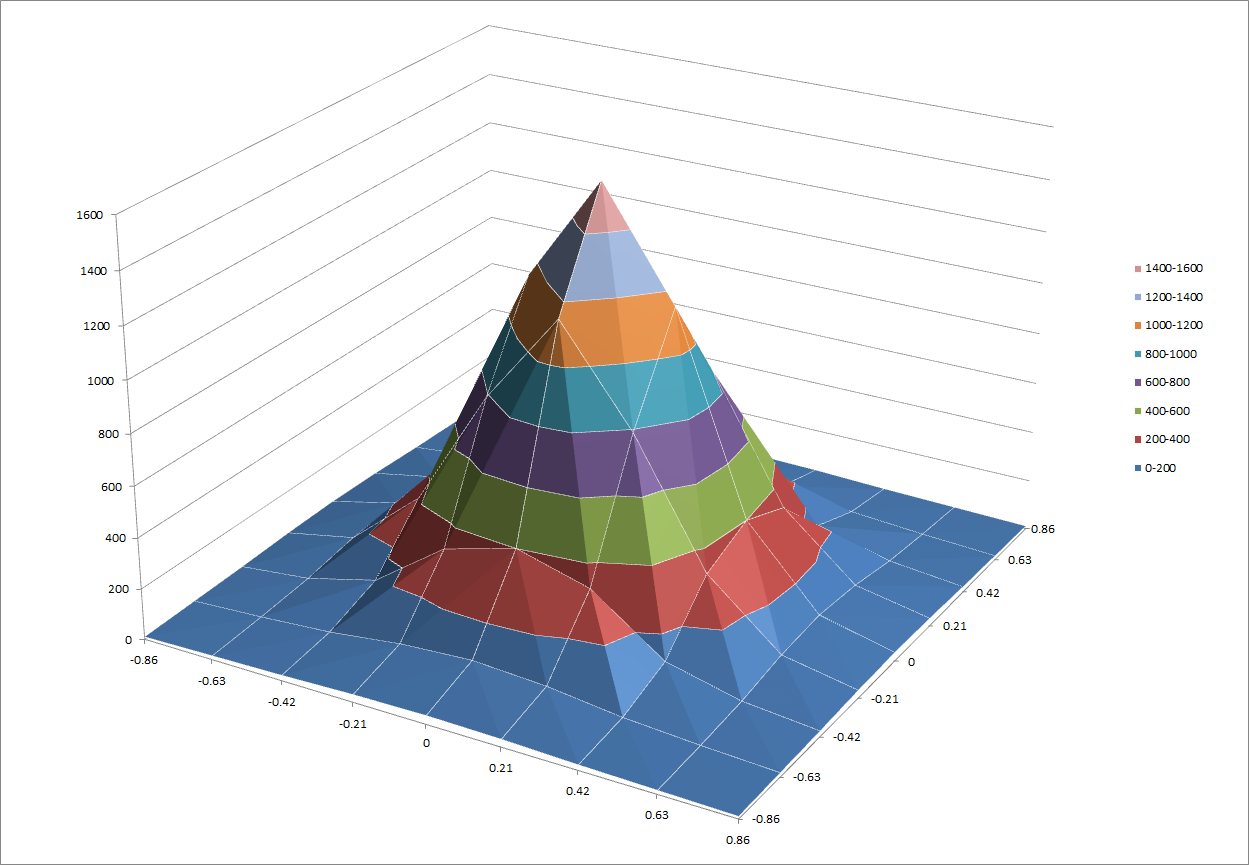

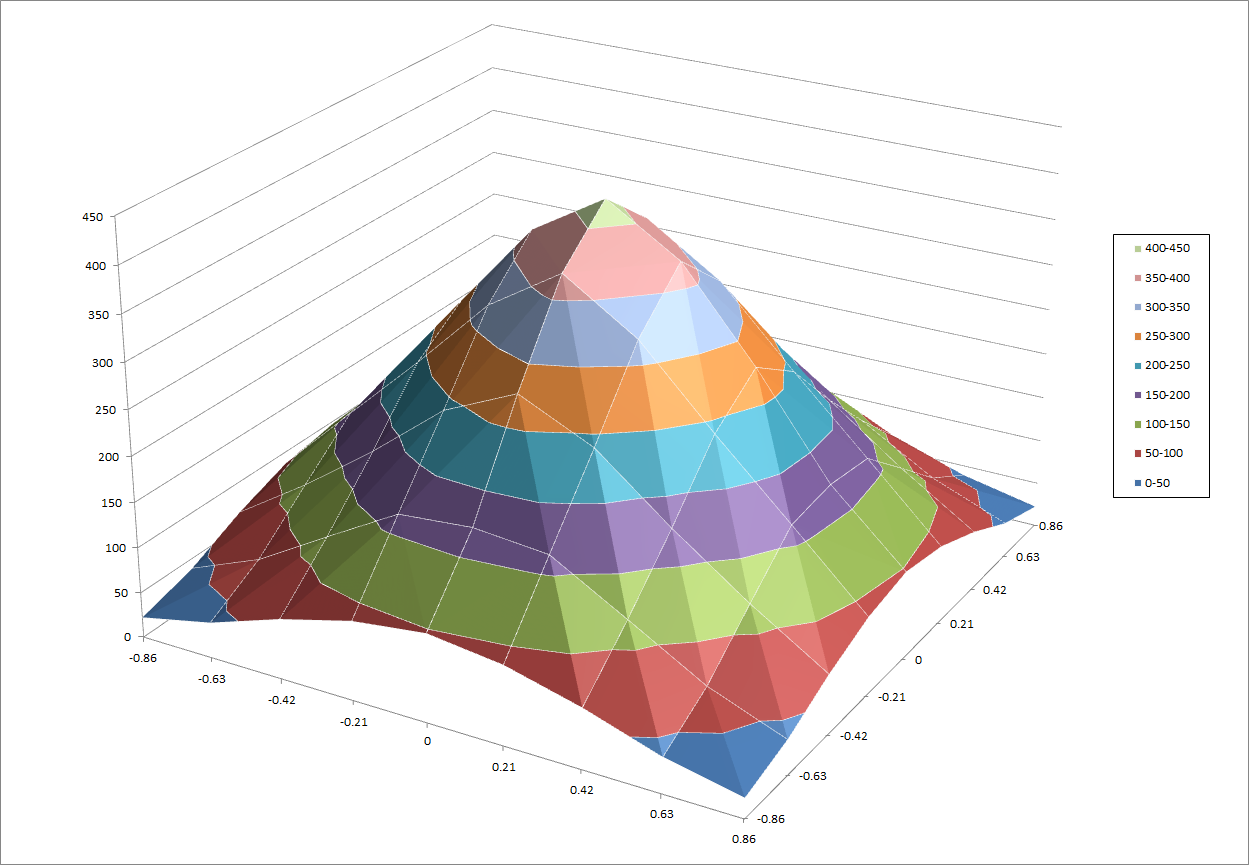

This is our PPFD data for our 320W Fixture @ 1 FT from canopy

Graph is in METERS not FEET, and again, we understand our optical and coverage issue, and we are half way designing an optical lens that will decrease fall off rate on the edges.

Go ahead and multiple this by 2 for a general idea of how it's going to perform.


tstick

tstick

Well-Known Member
Call the passive one "The Passive Fist" (and use the yin-yang shaped Duet!)

Call the active one "The Active Fist"

If you use those names, I'll only charge you one fixture (each)!

You saw it here, first!

:)

tstick

tstick

Well-Known Member
That's some pro-looking stuff, Alex!

How much does that fixture weigh?

I can't wait to see what you guys are dialing in for the lens-things! Any idea when it will all be ready for market? Month? Year?

nevergoodenuf

nevergoodenuf

Well-Known Member
They are doing exactly what I told them they needed. The lenses in the graph are for there standard lighting. The new lenses with be designed to give even coverage from around 2'. No other lenses are be designed this way yet, as far as I have seen. We are all using lenses and reflectors meant for 8' and higher. This is just my opinion.

URSA LED

URSA LED

Well-Known Member
PurpleBuz said:
sorry alex, but your coverage sucks. big center hotspot and that's all she wrote.
Click to expand...
I completely agree. Although those graphs currently use general lighting optics.
Just wait till we're done with our new optics, an optical lens that sits on top of the COB with individual lasered "stations" that sit directly on top of each die. It's possible to even laser each "station" so that it gives a different angle. It's in the works..

P

PurpleBuz

Well-Known Member
Alex Lau said:
I completely agree. Although those graphs currently use general lighting optics.
Just wait till we're done with our new optics, an optical lens that sits on top of the COB with individual lasered "stations" that sit directly on top of each die. It's possible to even laser each "station" so that it gives a different angle. It's in the works..
Click to expand...
ok cool, love to see the coverage with your custom designed lenses.

btw does anybody really want to hang lights 8' from the canopy ? 2-3 feet makes sense to me but 8 ?

nevergoodenuf

nevergoodenuf

Well-Known Member
Hey, PurpleBuz, I am running the Luna 300 @ 250 watts each and I can get it as low as 18" on some strains. No lenses, just reflector.

URSA LED

URSA LED

Well-Known Member
tstick said:
That's some pro-looking stuff, Alex!

How much does that fixture weigh?

I can't wait to see what you guys are dialing in for the lens-things! Any idea when it will all be ready for market? Month? Year?
Click to expand...
Hey tstick,

I'm not exactly sure how much they weight yet, but the active will be int he range of 15 lbs. The passive will weight significantly higher though.

We will start selling these at HEMPCON, and pricing will be up the following week.

L

LivingsoilMan

Member
Alex Lau said:
Hey tstick,

I'm not exactly sure how much they weight yet, but the active will be int he range of 15 lbs. The passive will weight significantly higher though.

We will start selling these at HEMPCON, and pricing will be up the following week.
Click to expand...
This light seems really cool ! Ppfd looks awesome and efficiency looks awesome both versions look awesome hope it comes with an awesome price ! Will be following along im looking for the best most efficient light out there.
