Lets see what I can remember pricing wise:
For the cloner itself:
- 18 gallon Rubbermaid Roughneck $7.97 (HD)
- 375 gph fountain pump $20 (Fleabay)
- 1 yard 5/8" clear tube (indicator + pump connection) $0.69
- 1 eight foot length of 1/2" schedule 40 pipe $1.59
- Bag of ten 1/2" T's $1.79
- Bag of ten 1/2" 90's $1.59
- Two poly pipe 90's $0.90
- 10 Sprayers (Fleabay) $9.99
- 10 Net pots with foam inserts (Fleabay) $14
- Tiny bit of pipe insulation for around the cord exit and two 1" grommets for the indicator
Total: ~$60
For the tent:
- roll of black Visqueen $8.97 (Lowes)
- 4 length of 8 foot 1"x2" fir @ $0.89 = $3.56
- Emergency blanket (Walmart) = $2.47
Total: ~$15

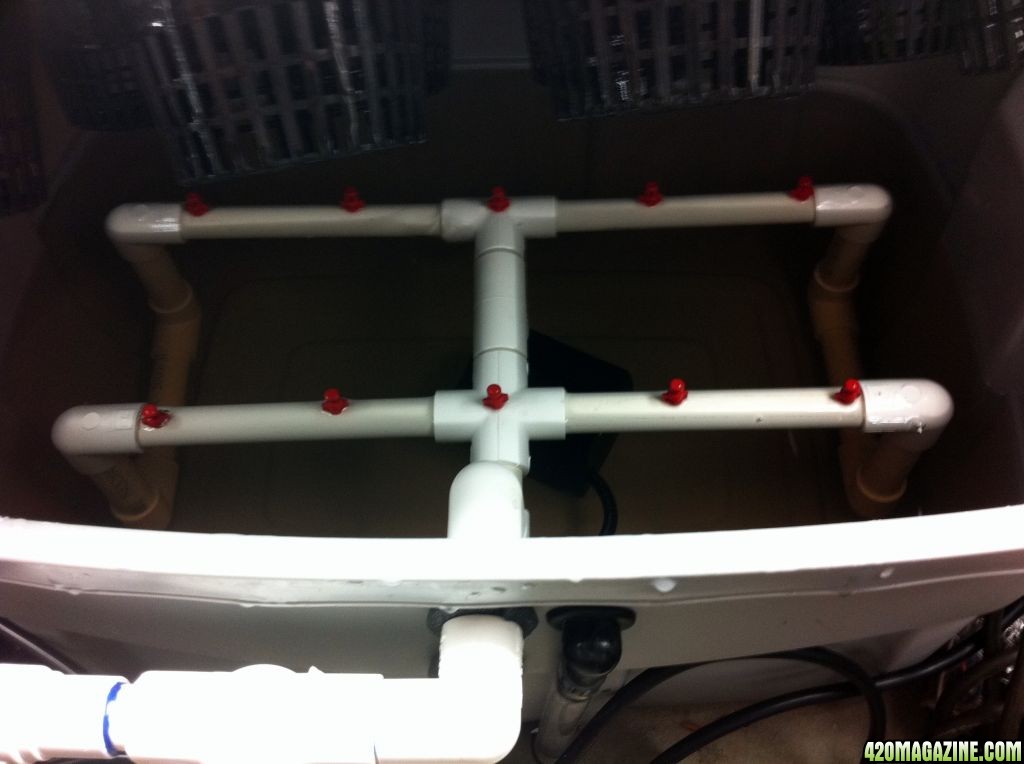

The cloner tub is just the
standard Stinkbud design with a few modifications. I did not do the end caps, but put in 90s to connect the next leg, thus creating a circular design for pressure equalization. I also had to make it a bit shorter, otherwise the 3.75" pots would not go down all the way in the lid. I added a 4-way instead of a T in the middle, and make it go through the side for a fill/drain. Lastly I added a clear tube for a level indicator. For nutrients I have added to the 8 gallon tab water (160 ppm): one teaspoon of the spa pH down granules, one tablespoon of each the micro, grow, and flower, and three tablespoons of some B1 root stimulator from HD. Ph is now 5.9 and we are at 480 ppm.

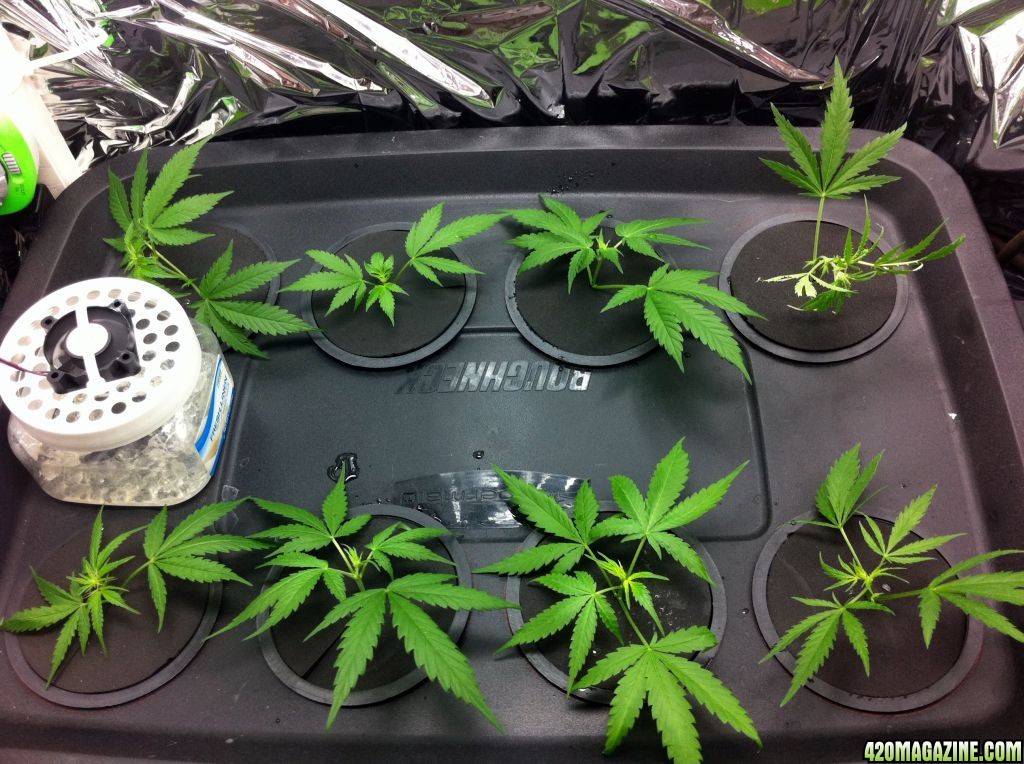

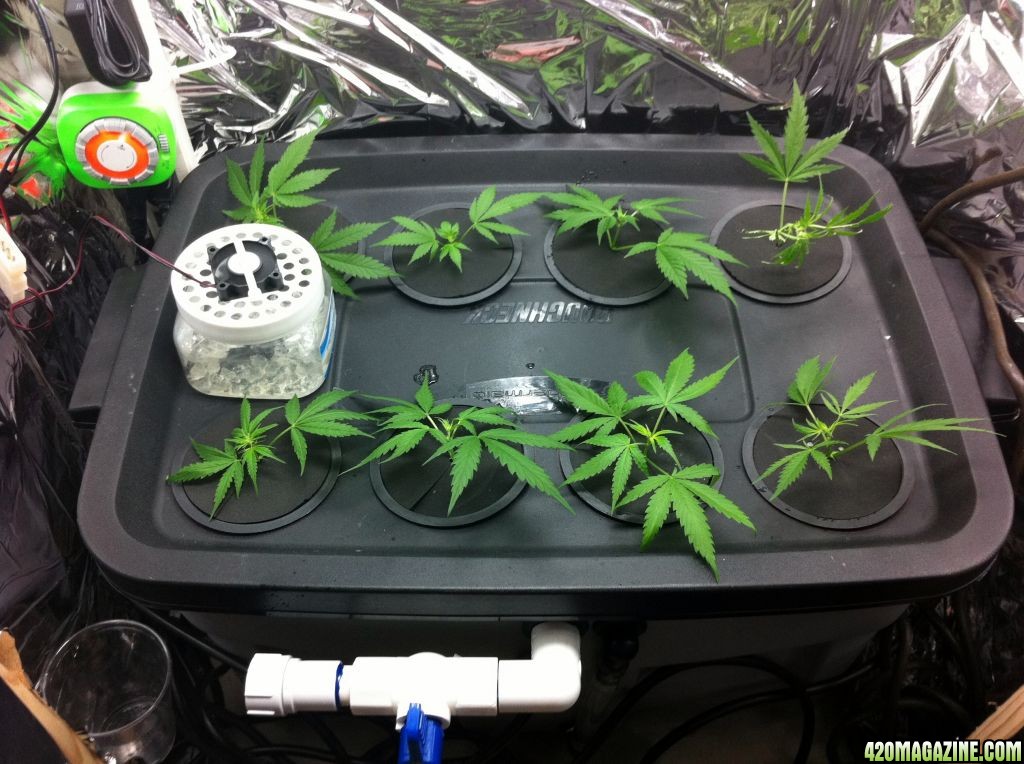

Here are the 3.75" net pots installed with the foam. The back row: the left three are the Jock Horror, and the right one is the Emerald Jack. The front row: the left three are Grapefruit Krush, and the right one is also Emerald Jack. The timer is a 50 second timer for 40 minutes and repeating. It is set to be on for two cycles (1 min 40 sec) and off for 4 cycles (3 min 20 sec)

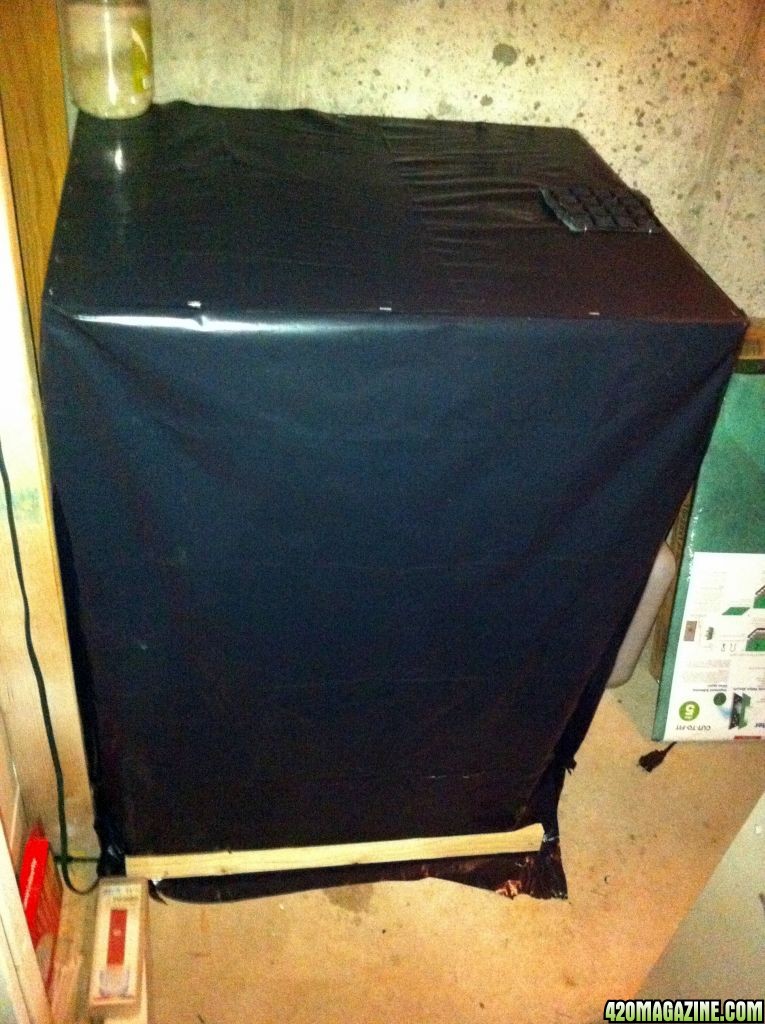

The outside tent is just a simple frame (like a clothes hamper). On the inside of the frame I stapled 6 mil Visqueen all around, while leaving some flaps on the front door area. Then I sprayed it with glue, and stuck some emergency blanket to it.
Then i covered the outside of the 1"x2" fame with another layer of Visqueen. That way there is a 1"-2" pathway between the two layers of plastic. I use this to make feed air to two holes that I made in the bottom right and left inside Visqueen. The air is drawn from the front panel, in between the plastic layers, to the hole on the inside layer, towards the top - where there is a 100 mm computer fan, going over to the other side of the top, again, in between the plastic layers, and then outside through the little grate you see.

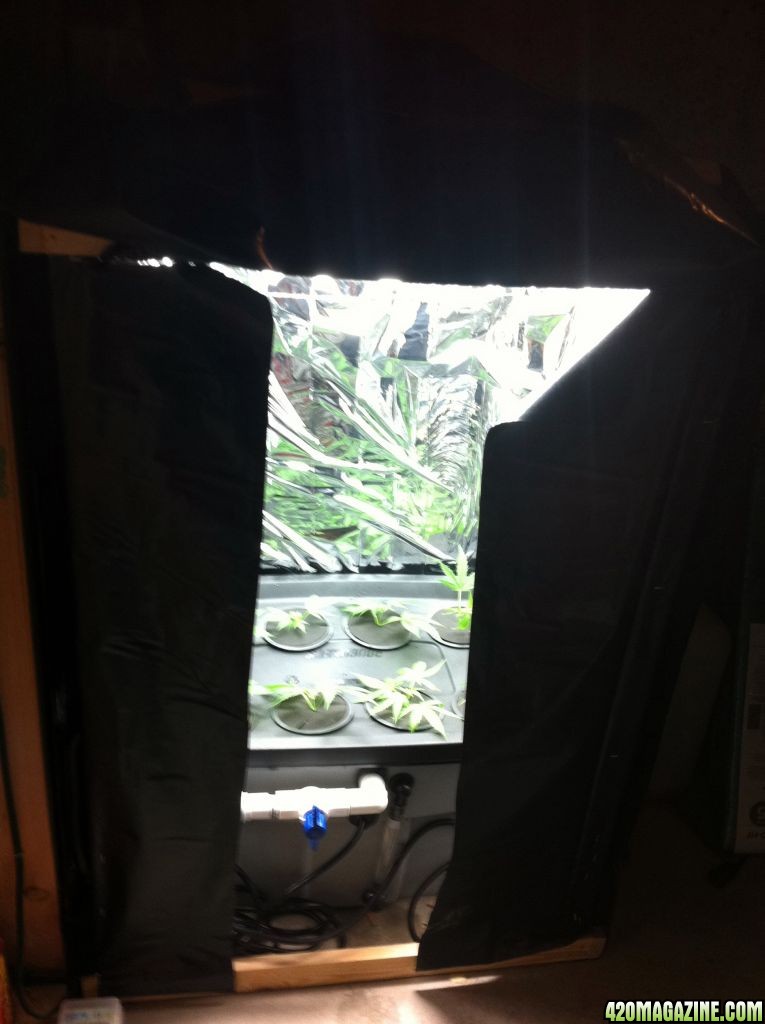

The front flap is weighted down by another piece of wood, and is a little over sized. The sides of the flap are tucked back into the 1 inch space which is created by the two layers of plastic, providing a light tight door.

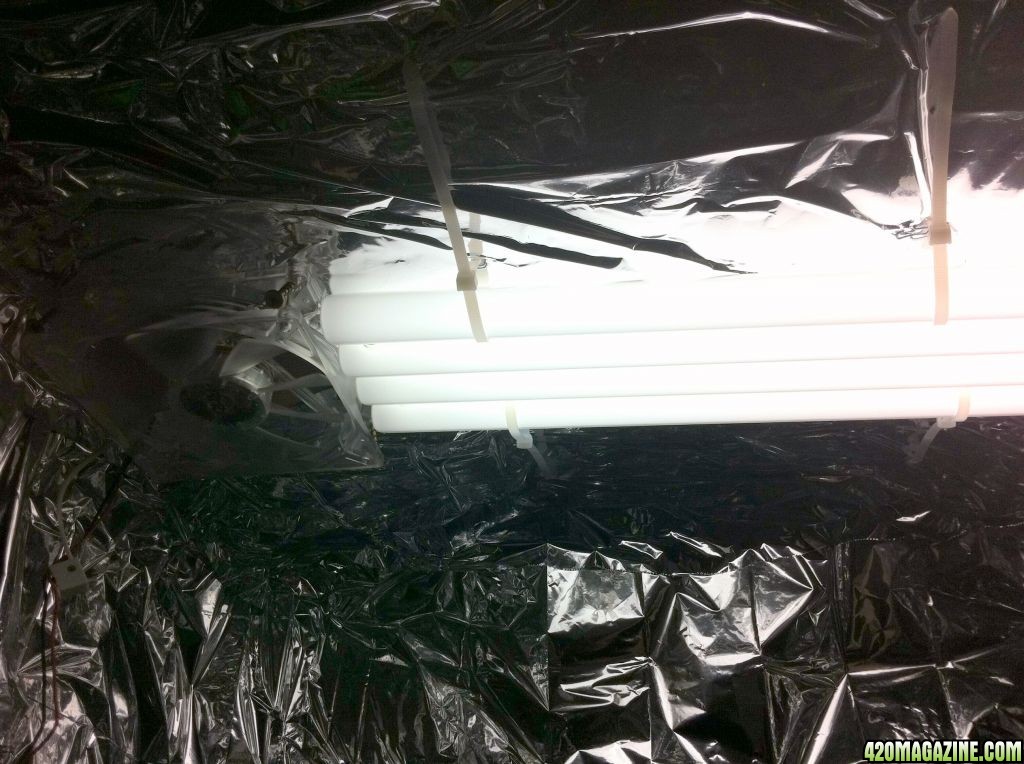

The light is a 96W power compact in 6700k (anybody have any idea on the lumens?) and you can see the little computer fan to the left. The light is on 24 hours for now, until I get another timer. Then I will do the 18/6.
Oder control is done by a little jar of ona gel, with a tiny cpu fan above it.
What do you guys think?
