Your CXA3590 Mission Should you Choose to Accept It !

JavaCo

JavaCo

Well-Known Member

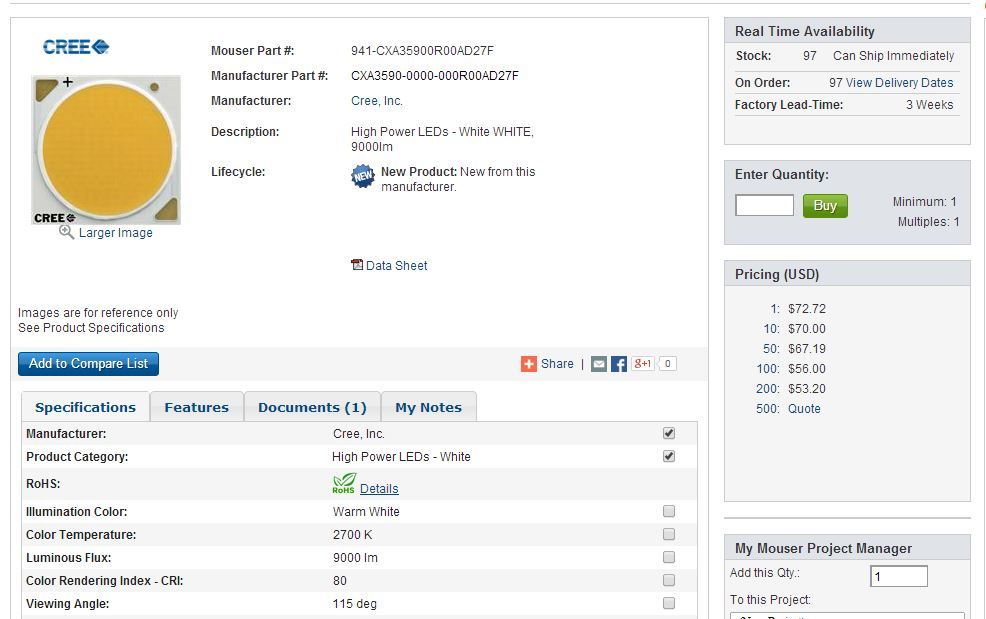

I noticed today that Mouser has CXA3590 2700k middle bin Chips on order. Expected Delivery date is the 19th of this month. I went ahead and pre ordered me one. Link = http://www.mouser.com/Search/ProductDetail.aspx?R=CXA3590-0000-000R00AD27Fvirtualkey57280000virtualkey941-CXA35900R00AD27F

So the mission Should you Choose to Accept it is .....Finding LED drivers that will work with this joker. 77 - 82 Volts 1200 mA is the Test Voltage and current of the chip..

So far only luck i have had is this Meanwell That has adjustable current and voltage. Pretty sure this would work http://www.mouser.com/ProductDetail/Mean-Well/HLG-185H-C1400B/?qs=%2bmCJZPMmHFNyZddMqMvYFQ== Pricey though. I will see what else i can dig up ....Good Luck !

stardustsailor

stardustsailor

Well-Known Member
Harvard Enginnering CLH 150 / 200

http://www.harvardeng.com/productscoolled.do

Magtech' s like the
ESL1100-100-C1200
ESL1100-75
ESL1100-75-C2080
ESL1100-88-C1600 => http://www.psui.com/pdf/esl1100.pdf (1.15A 75-88VDC )

(search 'magtech' more carefully...They have pretyy powerful range of cc drivers )
http://www.psui.com/cgi-bin/shopper.cgi?defaction=search&keywords=esl1100&template=cart/magtech_cart.htm

MCWong 's
LDD-100-095-1050-U
or
LDD-120-114-1050-U

http://www.mcwonginc.com/pdf/LED.pdf

Maybe some more tomorrow...

Last edited:
stardustsailor

stardustsailor

Well-Known Member
Note: there;'re little chances that you'll find a quality/branded/certified/blah-blah... driver at that power range ,being cheap....
That's the -real- 'difficult' part ....

JavaCo

JavaCo

Well-Known Member
Thanks guys ,

Yeah Star i for sure am going to go with quality and efficiency for this Chip since it will be used 12 hours a day 365 days a year for at least 5 years and hopefuly many more then that.

Meanwell still looking the best to me so far 93.5 efficient. It is way over kill though since it can put out over 185 watts. I would set it up to be dimmable maybe even add a LED amp gauge. It would also let you go up to 107 watts if you set the voltage to 77. I would more then likely run it @ 1.2 amps most of the time.

SupraSPL

SupraSPL

Well-Known Member
Good find Java! I had the pleasure to test a Meanwell HLG-185H-C1050A with CXA3070s. It reached 93.5% efficiency at 190vF. At 140vF it was 92.6%. At 100vF it was 89%. The 190vF is a hard limit so unfortunately I do not think we could run a pair of CXA3590s on the HLG-185H-C1400B (143vF max) we would need about 160vF.

Here is how it stacks up against the CXA3070 3000K Z4.


CXA3590 2700K vs CXA3070 3000K.png

JavaCo

JavaCo

Well-Known Member
SupraSPL said:
Good find Java! I had the pleasure to test a Meanwell HLG-185H-C1050A with CXA3070s. It reached 93.5% efficiency at 190vF. At 140vF it was 92.6%. At 100vF it was 89%. The 190vF is a hard limit so unfortunately I do not think we could run a pair of CXA3590s on the HLG-185H-C1400B (143vF max) we would need about 160vF.

Here is how it stacks up against the CXA3070 3000K Z4.


View attachment 3147502
Click to expand...
Looks like the HLG-C series does not have adjustable Voltage like the regular HLG series. So it was my bad thinking it would work. The stupid HLG series only goes up to 54 volts so back to the drawing board......:fire:

JavaCo

JavaCo

Well-Known Member
Well this is what cree has on there site. IT is a HLG -C series. Only problem i see is capping it from going over 88 volts. Setting 80k of resistance on the dimmer will make it not go over 80% Of the total 150 watts. So i think it would cap it @ 120 watts 85 or so volts.

O

overthinkingismything

Member
You don't need to 'cap' it; it's a constant current driver. The LED will only take the voltage it needs dependent on its temperature at 1400 ma.

Why not go 3070 though? 3590 just doesn't seem worth it given the current pricing and lack of suitable drivers IMO.

MrFlux

MrFlux

Well-Known Member
SupraSPL said:
I do not think we could run a pair of CXA3590s on the HLG-185H-C1400B (143vF max) we would need about 160vF
Click to expand...
Yes the 143V really is a hard limit, no headroom like with cheapo drivers, but you could make a string of 3590 + 3070.

The HLG-185H-C1400 is a very nice driver btw, I have the 'A version (with pot meter). It's just a few bucks more than the '120H for an extra 50W.

JavaCo

JavaCo

Well-Known Member
Here is a link to some 3590 holders http://www.newark.com/ideal/50-2303cr/led-holder-cree-cxa35-cob-array/dp/39X0077

To make it worthwhile to order from newark I also ordered some c-14 sockets and cords. When i did my 3050,s i did the same thing. Was quite surprised on the cord They are the nice fat thick ones. I really should contact mouser and digikey ask them to stock up on some holders for these chips.

Link to c14 http://www.newark.com/webapp/wcs/stores/servlet/ProductDisplay?catalogId=15003&langId=-1&urlRequestType=Base&partNumber=45P4893&storeId=10194

Cord Link http://www.newark.com/volex/17500/power-cord-nema5-15p-iec-c13-2m/dp/37F3339 Dont let the stock picture of the cord fool you it is 6.7 feet long

Here is a driver that would work i believe http://www.newark.com/xp-power/dlg150ps1400-a/led-driver-150w-1-4a-107v/dp/19X6853

JavaCo

JavaCo

Well-Known Member

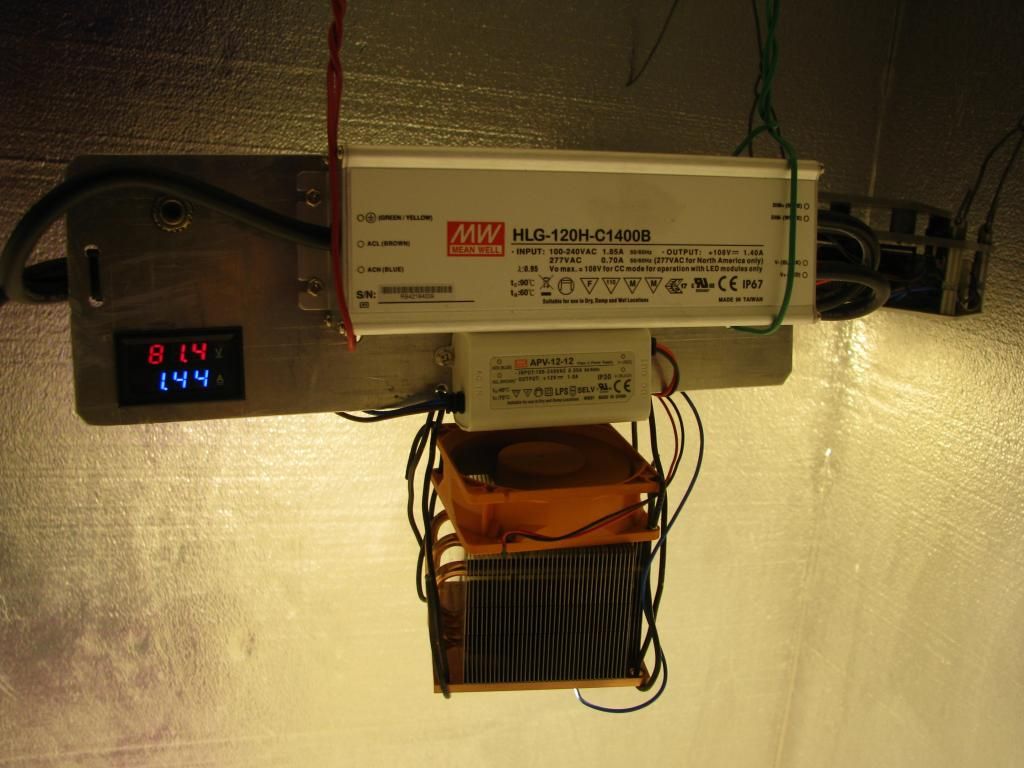

Here is the 3590 i slapped together today cranked all the way up (117watts). Not at all what it was supposed to be. All my lights were supposed to go in a fixture but after smoothly getting almost all the parts shit got totally fucked up the last two weeks. So next flower cycle it should be in it's proper home. Got two more cxa3050 2700k to slap together and then 28watts of 730nm I have to string up. So i will have the 3590 in the center one 3050 in each corner and one 730nm in the gaps , got 4 of them 7watts a chip. Back to work for me want to flip 12/12 on Sunday..



Here it is at 1.2 amps Cree test current for the cxa3590

Last edited:
