Samsung F564B Linear Strip Build

Buck5050

Well-Known Member

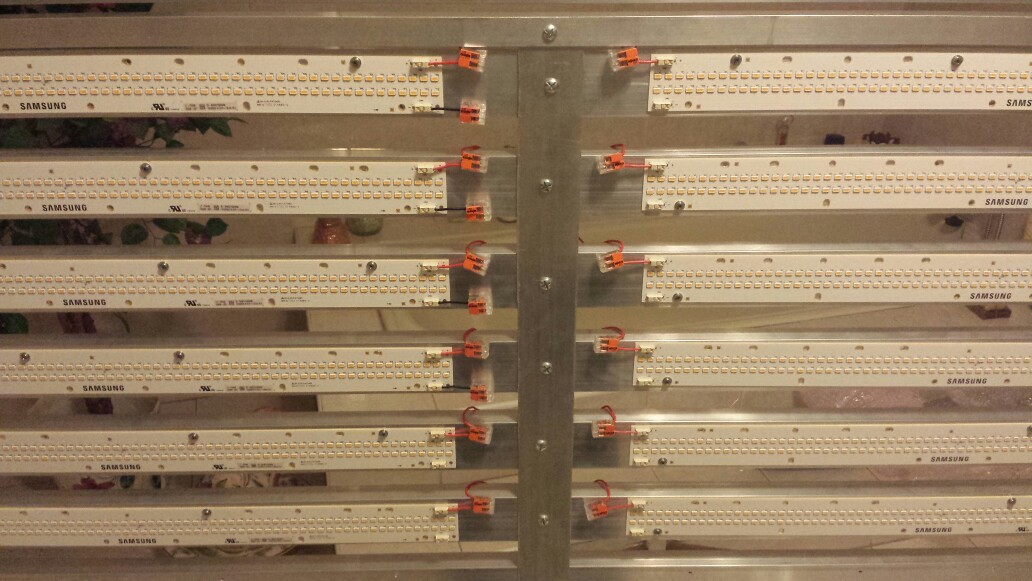

Wagos are very ugly but do have an advantage of being able to make changes to the circuit without shortening the conductor you used. Heatshrinking over a connection looks clean but a pain to remove if you want to change something.


Takeshy

Well-Known Member
UPDATE

A lot has changed since I started this thread. I made many changes and I guess now it's the time to send an update.
Wagos, wire, thermal switch and more strips have arrived. Frame, screws, drivers and power cords are next.
Grow tent size: 5x5

Number of LM561C diodes: 5184
Diode current: 62mA
Aprox. total wattage: 960W
Aprox. total lumens: 174000lm
36 x LM561C F Series Gen3 F564B Linear Strip 3000K 80CRI
https://www.digikey.com/products/en?keywords=SI-B8V521560WW
Ordered, shipped, received!

3 x Mean Well HLG-320H-48A
http://mouser.com/ProductDetail/Mean-Well/HLG-320H-48A/
Ordered, shipped, received!

3 x Qualtek Power Cord AC 2.5m Blue+Brown+Yellow/Green
http://mouser.com/ProductDetail/Qualtek/363012-D01/
Ordered, shipped, received!

3 x Cantherm F20 Thermal Switch 70ºC
https://www.digikey.com/products/en?keywords=F20A07005ACFA06E
Ordered, shipped, received!

100 x Wagos 221-412
50 x Wagos 221-413
25 x Wagos 221-415

https://www.amazon.com/gp/product/B01GVS7ZES/
Ordered, shipped, received!

1 x Black Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83AC6/
Ordered, shipped, received!

1 x Red Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83C6U/
Ordered, shipped, received!

3 x SAMHUE Waterproof Connector IP68
https://www.amazon.de/dp/product/B076KKYNL4/
Ordered, shipped, received!

3 x ARCTIC MX-4 Thermal Compound Paste (20 Grams)
https://www.amazon.de/gp/product/B004ULZITS/
Ordered, shipped, received!

1 x Fluke 115 Multimeter
https://www.amazon.de/gp/product/B0011D6O0A/
Ordered, shipped, received!

Frame + Screws
Ordered, shipped, received!




Last edited:

BuddyColas

Well-Known Member
UPDATE

A lot has changed since I started this thread. I made many changes and I guess now it's the time to send an update.
Wagos, wire, thermal switch and more strips have arrived. Drivers and power cord are next.


36 x LM561C F Series Gen3 F564B Linear Strip 3000K 80CRI
https://www.digikey.com/products/en?keywords=SI-B8V521560WW
Ordered, shipped, received!

3 x Mean Well HLG-320H-48A
http://mouser.com/ProductDetail/Mean-Well/HLG-320H-48A/
Ordered, shipped, received!

3 x Qualtek Power Cord AC 2.5m Blue+Brown+Yellow/Green
http://mouser.com/ProductDetail/Qualtek/363012-D01/
Ordered, shipped, received!

3 x Cantherm F20 Thermal Switch 70ºC
https://www.digikey.com/products/en?keywords=F20A07005ACFA06E
Ordered, shipped, received!

100 x Wagos 221-412
50 x Wagos 221-413
25 x Wagos 221-415

https://www.amazon.com/gp/product/B01GVS7ZES/
Ordered, shipped, received!

1 x Black Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83AC6/
Ordered, shipped, received!

1 x Red Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83C6U/
Ordered, shipped, received!

3 x SAMHUE Waterproof Connector IP68
https://www.amazon.co.uk/dp/product/B076KKYNL4/
Ordered, shipped, received!

3 x ARCTIC MX-4 Thermal Compound Paste (20 Grams)
https://www.amazon.co.uk/gp/product/B004ULZITS/
Ordered, shipped, received!

1 x Fluke 115 Multimeter
https://www.amazon.de/gp/product/B0011D6O0A/
Ordered, shipped, received!

Frame + Screws
Ordered, shipped, received!



What are you using to mount/heatsink your strips?


canadian1969

Well-Known Member
Love fluke , used their networking/ethernet testing tools for years. But... I have to say I would not spend $200 USD to get a digital multimeter. Fluke makes great quality equipment, cant argue with that, but fluke has always been overpriced imo. Sort of like buying a lambo to drop the kids off a soccer. I still to this day use my $30 Micronta from Radio shack bought in 1994 and it does everything that Fluke does. I have dropped it down a flight of concrete stairs (came with a large rubber protective shell which in retrospect is awesome), spilled pop and coffee on it, friggin thing is indestructible. At the time a Fluke prolly would of cost me $600 or more.


Takeshy

Well-Known Member
UPDATE

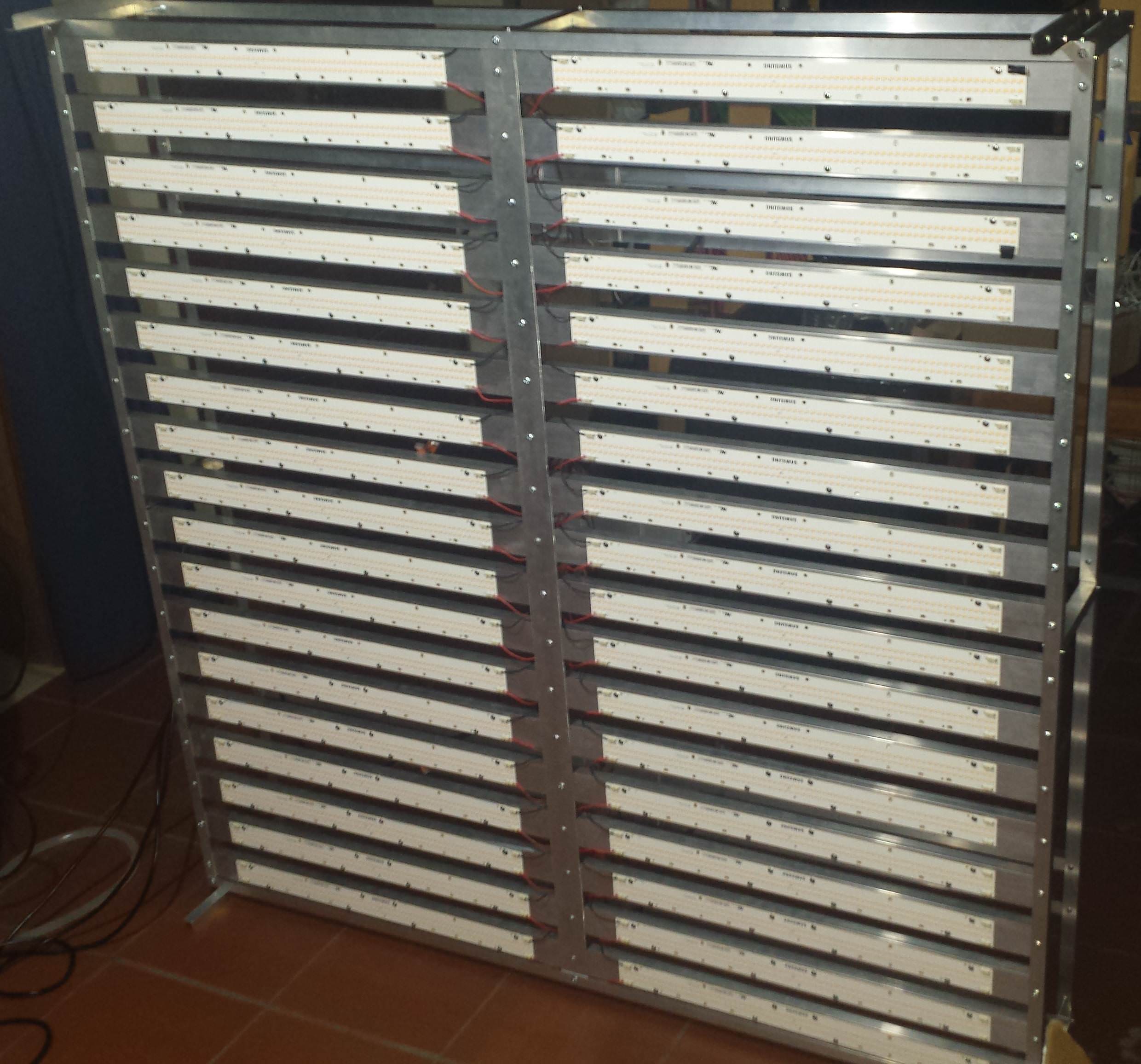

Only "2 x Mean Well HLG-320H-48A" missing. Frame is already built, just need a few fixes and its good to go. Connected my first driver last night and it is awesome! Only one driver and it almost made me blind :D

I'm still doing some tests, I will send more pictures with the wiring later. I still don't know which Vo should I set my driver. I made another thread about this topic in this forum.

Ignore the item list from older posts.This is the updated version.
Grow tent size: 5x5

Number of LM561C diodes: 5184
Diode current: 62mA
Aprox. total wattage: 960W
Aprox. total lumens: 174000lm
36 x LM561C F Series Gen3 F564B Linear Strip 3000K 80CRI
https://www.digikey.com/products/en?keywords=SI-B8V521560WW
Ordered, shipped, received!

3 x Mean Well HLG-320H-48A
http://mouser.com/ProductDetail/Mean-Well/HLG-320H-48A/
Ordered, shipped, received!

3 x Qualtek Power Cord AC 2.5m Blue+Brown+Yellow/Green
http://mouser.com/ProductDetail/Qualtek/363012-D01/
Ordered, shipped, received!

3 x Cantherm F20 Thermal Switch 70ºC
https://www.digikey.com/products/en?keywords=F20A07005ACFA06E
Ordered, shipped, received!

100 x Wagos 221-412
50 x Wagos 221-413
25 x Wagos 221-415

https://www.amazon.com/gp/product/B01GVS7ZES/
Ordered, shipped, received!

1 x Black Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83AC6/
Ordered, shipped, received!

1 x Red Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83C6U/
Ordered, shipped, received!

3 x ARCTIC MX-4 Thermal Compound Paste (20 Grams)
https://www.amazon.de/gp/product/B004ULZITS/
Ordered, shipped, received!

1 x Fluke 115 Multimeter
https://www.amazon.de/gp/product/B0011D6O0A/
Ordered, shipped, received!

Frame + Screws
Ordered, shipped, received!











Randomblame

Well-Known Member
Wow! Thats a huge light, mate!
Well made!
LM561c below 60mA is incredible efficient.
Plan something similar but only with 320w for a 10sft.tent!
Good luck... hope we see some future results.


ANC

Well-Known Member
Those are some nice strips, price is a bit high but better than the last two LEDs we looked at.

My trays are 2 x 4 so I would need only 6 of the double LED strip units to outperform the lumen output of a 1000W sodium /square foot and probably running circles around it in PAR. all this while pushing 168lm/w at full power on a 300W driver. pretty much dollar to cover the same area with quantums at the same wattage but with better spread and no need for the stupid aluminium plates.

Wish I could fast forward 3 months to see how all these light do in the real world.

You would need 7 strips and 350W to do the same in a 10' square.


nfhiggs

Well-Known Member
Fuck Wagos. buy heatshrink, put some on the wire, move away from joint, solder, slide heatshrink over joint, heat that mofo up with a hot air gun, and neat and safe connectors.
I'm a big fan of heat shrink and solder connections.


ANC

Well-Known Member
Those wagos are just asking for shit, they don't even have a hole for a screw like a cheap terminal block has. It is just asking to catch on something and cause shit.


ANC

Well-Known Member
Dail the voltage all the way down and use the current pot to adjust the output, I assume you are going for low current so it will be somewhere between 43.7 and 46V


Takeshy

Well-Known Member
UPDATE

All items have arrived. I'm hoping to finish the light this weekend and share with you some pics.

Ignore the item list from older posts.This is the updated version.
Grow tent size: 5x5

Number of LM561C diodes: 5184
Aprox. diode current: 60mA
Aprox. total wattage: 926.7W
Aprox. total lumens: 168737lm
36 x LM561C F Series Gen3 F564B Linear Strip 3000K 80CRI
https://www.digikey.com/products/en?keywords=SI-B8V521560WW
Ordered, shipped, received!

3 x Mean Well HLG-320H-48A
http://mouser.com/ProductDetail/Mean-Well/HLG-320H-48A/
Ordered, shipped, received!

3 x Qualtek Power Cord AC 2.5m Blue+Brown+Yellow/Green
http://mouser.com/ProductDetail/Qualtek/363012-D01/
Ordered, shipped, received!

3 x Cantherm F20 Thermal Switch 70ºC
https://www.digikey.com/products/en?keywords=F20A07005ACFA06E
Ordered, shipped, received!

100 x Wagos 221-412
50 x Wagos 221-413
25 x Wagos 221-415

https://www.amazon.com/gp/product/B01GVS7ZES/
Ordered, shipped, received!

1 x Black Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83AC6/
Ordered, shipped, received!

1 x Red Solid Copper Wire 18 AWG (100 ft.)
https://www.amazon.com/gp/product/B00IN83C6U/
Ordered, shipped, received!

3 x ARCTIC MX-4 Thermal Compound Paste (20 Grams)
https://www.amazon.de/gp/product/B004ULZITS/
Ordered, shipped, received!

1 x Fluke 115 Multimeter
https://www.amazon.de/gp/product/B0011D6O0A/
Ordered, shipped, received!

Frame + Screws
Ordered, shipped, received!



ANC

Well-Known Member
How hot do the heatsinks you made run?
Like if you can touch them, for how long can you keep your thumb on it?
I am trying to calculate how hot the 4 foot 24b boards would get if I add a 3C/W heatsink. I think I smoked too much, cause my calculations all end up with the thing being hotter than without the heatsink on. Can't be right.


Takeshy

Well-Known Member
They arent really heatsinks just aluminium U profiles. Dimensions are length:140cm x width:4.5cm x height:2cm.

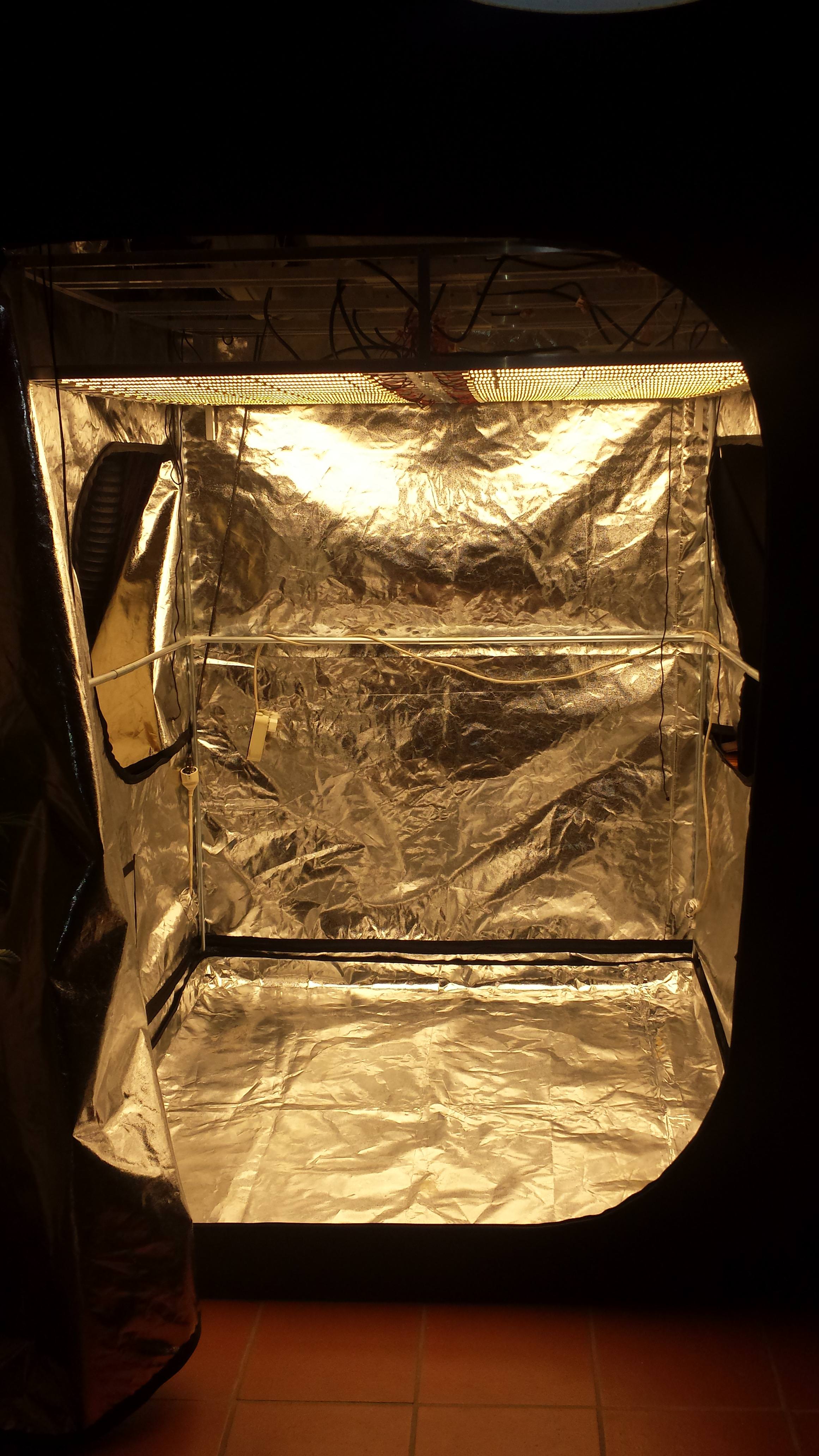

I haven't noticed any heat but I only ran them for 5-10minutes. I will post more info this weekend as I will try to finish the build and mount the light in my grow tent.
