Grow 2 lbs. on a 2’ x 4’ 32 Site DIY Aeroponic Unit

Discussion in 'Do It Yourself' started by DrGreenFinger, Jan 31, 2009.

  1.
    DrGreenFinger

    DrGreenFinger Well-Known Member

    Grow 2 lbs. on a 2’ x 4’ 32 Site DIY Aeroponic Unit

    Inspired by See More Buds Volume 1.

    Items needed:

    [​IMG]


    large tote app. 45-60 gal, measuring app. 2’ x 4’ x 18” deep $23 (Home Depot)
    10 ft. ½ pvc pipe $2 (Menards – it may have been a buck, but Lowes is 2)

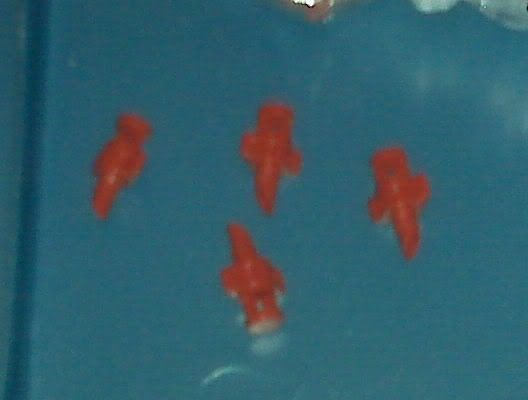

    36 – 330 degree EZ Clone sprayers @ $.60 ea. $22 (local hydroponics shop)
    32 – 3” net pots @ $.29 ea. $10 (local hydroponics shop)
    Eco Plus (or equivalent) 633 GPH water pump $45 (local hydroponics shop)
    7 – ½ T pvc connectors app. $3 (Menards)
    4 – 90 degree pvc elbow connectors less than $2 (Menards)
    8 x 10 plexiglass sheet $1.50 (Home Depot or Lowes)
    vinyl sheet or trash bag cut into 8” wide strip to circle inside of tote

    Total - $108.50

    I had to spend an additional $18 for a bit to drill the 3” holes.

    After contemplating this project for months I finally worked it out only to find that there are many of these out there in DIY land. I became interested in aeroponics after seeing “See More Buds 1” and how the grower maximized his growing space. Instantly I was reminded of my Chicago buddie’s words “we go to the store and see how the item is designed, then build our own.” After watching that video repeatedly, and investigating the EZ Clone up close, I came up with this spin on the Aquamist 32 site:

    [​IMG]

    Get you a XL tub (45 gal. and up). Try to find one with a secure fitting lid and that is unwarped even in the bottom. This is a 54 gal. measuring 42.5 x 21.5 x 18.6.


    [​IMG]

    For best results, find a tote with a flat (or semi-flat) lid.

    Next, you will need to secure a tray in the center of the bottom to hold your pump. I found an 8 x 10 sheet of plexiglass for $1.50 at the hardware store and cut it in half. I then used Gorilla Glue to secure it to the tub. Hmmm. I hope Gorilla Glue is safe.
    [​IMG]


    Cut 3” holes spaced evenly apart. This will give you app. 9 sites per square foot. As documented in the first See More Buds video, the grower used 3 different sized tables, side by side. One 2 x 4 table had app. 100 - 2” sites, one had 32 – 4” sites and the last had 16 – 6” sites. Each table produced close to 2 lbs., with the 100 site producing more. The plants were grown to full maturity (one weighing 2 oz.) in 2” cups. So, I decided to go in between the 2” and 4” cups. 32 fit perfectly with enough room for a great SOG or SCOG.
    [​IMG]

    Take your plastic sheet and secure it to the inside of the lid using silicone, adhesive or duct tape. It should hang as a curtain to cover the gap between lid and tote. This is the area I haven’t spent much time on…obviously.

    At this point you may want to add a drain plug and maybe a reservoir level meter (clear tubing up side). I was in a hurry and went straight to the manifold.

    For this large manifold you will need your 1/2” PVC.

    Cut:
    13 - 6” pieces.
    2 – 2.5” pieces

    Take 10 of the 6” pipes and make drill hole marks at 1 ¼, 3, and 4 ¾ inches on each pipe. Take 2 more 6” pipes and make the marks at 2 and 4 inches. Leave the last 6” piece intact. Next, mark the 2.5” pieces with one mark each at 1 inch from either end. To re-cap, 10 of the 6 inchers will have 3 holes, 2 will have only two holes, and 1 will be left as is. 2 of the 2.5” pieces will have only 1 hole in each.

    Now, you can drill your holes with an 11/64 drill bit if you have the same EZ Clone sprayers.


    [​IMG]



    If not, practice the whole sizes on a scrap piece of pipe until you have the correct size to accommodate your sprayers, and insert them.
    [​IMG]


    Now connect the pipes using the 3-hole 6” pipes for the outer frame, and the 2-hole 6” pipes with the 2.5” pipes to construct the center. I did not glue mine for various reasons, one being easy cleaning by total disassembly. Also, I want to be able to make slight adjustments if needed.
    [​IMG]


    [​IMG]

    Once complete, use the remaining 6” pipe to connect the manifold to the pump via the adaptor. Be sure to use an equivalent pump as the Eco Plus 396 GPH pump was too small for this size manifold. I would not go below 600 GPH. Also, I was going to use a 1500 GPH sump pump from Menards for $50, but those things use huge power; 500W vs 35W.
    [​IMG]


    Set this in the bottom of your tub on the tray. If necessary, you can add additional support to the pump/manifold assembly by stringing a large nylon tie around the pump and under the tray. Or, you can find the rare ½” pvc connectors that make a 90 degree elbow plus a downward pointing female end that can be used to connect legs in the corners. That’s it. You will need a heater and thermometer, but air infusion is unnecessary. The water is extremely and abundantly oxygenated running its course through the pump, lines and sprayers.

    With the proper techniques a grower should produce an average of 1 oz. per plant, and 2 lbs. per harvest.

    I hope this helps someone with their production endeavors. Blessings to all and best wishes.

  2.
    DrGreenFinger

    DrGreenFinger Well-Known Member

    Here is the unit in action.

    [​IMG]

    [​IMG]

    This thing sprays crazy, or I would take a shot with the lid off. By the way, you will need to adjust the sprayers to cover your table. I made all of the perimeter sprayers point outward with the exception of the corners, which point toward the corner. The inner sprayers I have spraying the long way.

    HeadBusta740 and smok3y1 like this.
  3.
    SeattleSmoke247

    SeattleSmoke247 Well-Known Member

    Very cool man, I will be making one of these for future use.. Thank you!

    --SS:leaf:

  4.
    BuddyJesus

    BuddyJesus Well-Known Member

    what a sweet setup! I've never worked with one of these setups.. but really want to soon.. this will help out tons.. Thx! +rep

  5.
    growwwww

    growwwww Well-Known Member

    Damn thats amazing. And one fucking big box. U people in the USA have all this useful shit so available. Rubbermaids. Walmart wit cfl plugs and shit. In UK 150w hps will cost 170dollars without being wired and stuff, Arg u guys are lucky but that shit is sweet. Happy herb.

  6.
    Fuzzotany

    Fuzzotany Well-Known Member

    Got a link to See More Buds 1? All the stuff I came across was torrents and stuff.

  7.
    DrGreenFinger

    DrGreenFinger Well-Known Member


    thanx. yeah i am done with peat moss, perlite, verm. and all. aeroponics is reported to be tops. :weed:

  8.
    DrGreenFinger

    DrGreenFinger Well-Known Member

    sorry. that's gotta suck. but there are many trade-offs. hopefully things will get better for you guys as the demand grows. meanwhile, make the most of what you have (brains, tools and GOOGLE). you'll be good because you will experience immense satisfaction when your creations are successful. blessings. :peace:

    Higher Education likes this.
  9.
    growwwww

    growwwww Well-Known Member

    Cheers man. BUt it doesnt help that marijauna just got re-classified as a class B drug!!!!!!! on monday the 26th. So gay. FUCK GORDON BROWN. FUCK THE PO-PO. FUCK THE LIES!

    peace now im gonna shut up about things other than this awesome aeroponic unit.

    Blue brother likes this.
  10.
    CDN Kid

    CDN Kid Well-Known Member

    lookin goooood, ill be watching!

  11.
    DaveTheNewbie

    DaveTheNewbie Well-Known Member

    you get 2 pounds off of that tiny little thing?
    man i would love to see final pics of that !

    Mustaine4prez likes this.
  12.
    Inthesmoke

    Inthesmoke Well-Known Member

    Looks good! I will be making one of these forsure...What kind of timing does the water cycle operate on for this system? Also what is the average height of your plants with this set up?

  13.
    Bucket head

    Bucket head Well-Known Member

    subscribed...:leaf:

  14.
    Chris602

    Chris602 Active Member

    Well be Seeing But How Long Do You Plan To veg And Flower For.???

  15.
    Greendude

    Greendude Well-Known Member

    I think this aero setup rocks . I have one similar to yours works great

  16.
    DrGreenFinger

    DrGreenFinger Well-Known Member

    you will want to run this unit constantly, not sure if it is necessary, though. given the density of plants on this table, I would not veg very long for sativas. in the "see more buds" video, plants were vegged for a very short period (not exactly sure how long, now) and grew to app. 2 feet tall. the tables with the 2" net pots (100 site) produced the most.

    you can view the "see more buds" series on youtube. the aquamist system is covered in volume 1. the guy put three of these 2 x 4 tables in a 4 x 6 room, and built 3 of these rooms in a bedroom for a total of 9 tables. one room had 6" pots (16 sites x 3 for 48 plants). one room had 4" pots (32 sites x 3 for 96 plants). the last room used 2" net pots (100 site x 3 for 300 plants). he ended up having to remove 100 plants from the final room, yet this room still produced the most...6.4 lbs...IN A 4' X 6' ROOM!!! RESPECT!!!

    here's the link:

    http://www.seemorebuds.com/

    johnmac240 likes this.
  17.
    DrGreenFinger

    DrGreenFinger Well-Known Member

    with the strain i will be working with i will veg for no more than 2 weeks and flower for 9...SCoG. :weed:

  18.
    growwwww

    growwwww Well-Known Member

  19.
    DrGreenFinger

    DrGreenFinger Well-Known Member

    sorry. gorilla did NOT provide a strong bond. a safe plastics glue is probably in order. :roll:

  20.
    luv2grow

    luv2grow Well-Known Member

    Why not use a glue gun or silicone? Or marine grade 5500 or 6200 silicone?
